August 21, 2026Bridge Width: How Wide Should a Bridge Be?
Know What Bridge Width You Need for Your Project
Bridge width is one of the fundamental decisions made during bridge planning and design. The appropriate width depends on who will use the crossing, how they will move across it, anticipated traffic volumes, accessibility, vehicle requirements, railings, safety, site constraints, and future use.
There is no single standard width that works for every bridge.
A pedestrian bridge serving a quiet nature trail may have very different dimensional requirements from a heavily traveled urban greenway. Likewise, a private single-lane vehicular bridge requires a different width than a double-lane community entrance with attached pedestrian walkways.
Determining the appropriate bridge width early can help project teams coordinate the crossing with surrounding pathways, roads, approaches, foundations, site plans, and structural requirements.
For a broader look at the factors influencing a crossing, start with our Complete Guide to Bridge Design.
What Is Bridge Width?
Bridge width describes the horizontal dimension of the bridge deck available for its intended users and structural components.
However, there are several measurements that may be used when discussing bridge width.
Overall Bridge Width
Overall width generally describes the full width of the bridge structure, including portions occupied by railings, barriers, curbs, structural components, or other elements.
Clear Bridge Width
Clear width describes the usable space available between railings, barriers, curbs, or other obstructions.
This distinction is important when planning a bridge.
For example, a pedestrian bridge may have an overall structural width greater than the clear walking width available to users once railing systems and other components are considered.
YBC project specifications therefore frequently identify both dimensions. For example, the Waterside Place pedestrian bridge has an overall width of 13'9" with 9'2" clear, while the Lake David pedestrian bridge measures 7'10" overall with 7'4" clear.
When comparing bridge dimensions, always confirm whether a stated width represents overall width or clear usable width.
Is There a Standard Bridge Width?
There is no universal standard width appropriate for every bridge.
Bridge width depends on the crossing's intended use and the requirements governing the project. A trail bridge, shared-use path, golf cart bridge, private driveway bridge, community entrance, and public roadway bridge may all require different dimensions.
Factors that can influence width include:
- Pedestrian volume
- Vehicle traffic
- Number of lanes
- Bicycle use
- Accessibility
- Golf carts
- Maintenance equipment
- Emergency vehicles
- Pedestrian walkways
- Railings and barriers
- Curbs
- Viewing or gathering areas
- Approach width
- Applicable project requirements
- Future use
Rather than beginning with a predetermined dimension, the project team should establish who needs to use the bridge and how much functional space those users require.
Pedestrian Bridge Width
Pedestrian bridge width should reflect both the expected number of users and how people will use the crossing.
A relatively quiet walking trail may have different requirements from a bridge connecting major destinations within a park, campus, resort, or mixed-use development.
Pedestrian bridge width may need to account for:
- Single- or two-way pedestrian movement
- Wheelchairs and mobility devices
- Strollers
- Bicycles
- Runners
- Groups walking side-by-side
- Maintenance equipment
- Golf carts
- Viewing areas
- Emergency access
- Connections to surrounding pathways
The bridge should also be coordinated with the width and function of the trail, sidewalk, or pathway approaching it.
A wide path that suddenly narrows substantially at the bridge can create a bottleneck even when the crossing technically accommodates pedestrian traffic.
Explore our Pedestrian Bridge Design Guide for additional considerations involving span, loading, accessibility, railings, materials, and site conditions.
How Wide Should a Pedestrian Bridge Be?
There is no single correct pedestrian bridge width. The appropriate dimension depends on expected use, accessibility, anticipated traffic, applicable requirements, and site conditions.
A project team should begin by asking:
Who will use the bridge?
A pedestrian-only trail crossing may have relatively simple circulation needs, while a shared-use bridge may need to comfortably accommodate pedestrians and cyclists moving in both directions.
Then ask:
How many people will use it?
A bridge serving a lightly traveled nature trail presents a different circulation problem from a bridge connecting residential neighborhoods to a busy town center.
Finally:
What else needs to cross?
Maintenance carts, golf carts, landscaping equipment, mobility devices, bicycles, and occasional service vehicles can all influence the required clear width.
The appropriate dimension should therefore be established around the actual operating conditions of the project rather than selecting a width from a generic bridge catalog.
Examples of Pedestrian Bridge Widths
YBC's completed projects demonstrate how significantly pedestrian bridge dimensions can vary based on application.
Lake David – Park Pedestrian Bridge
Overall Width: 7'10"
Clear Width: 7'4"
This pedestrian bridge serves a public park environment and is also designed to accommodate park maintenance carts.

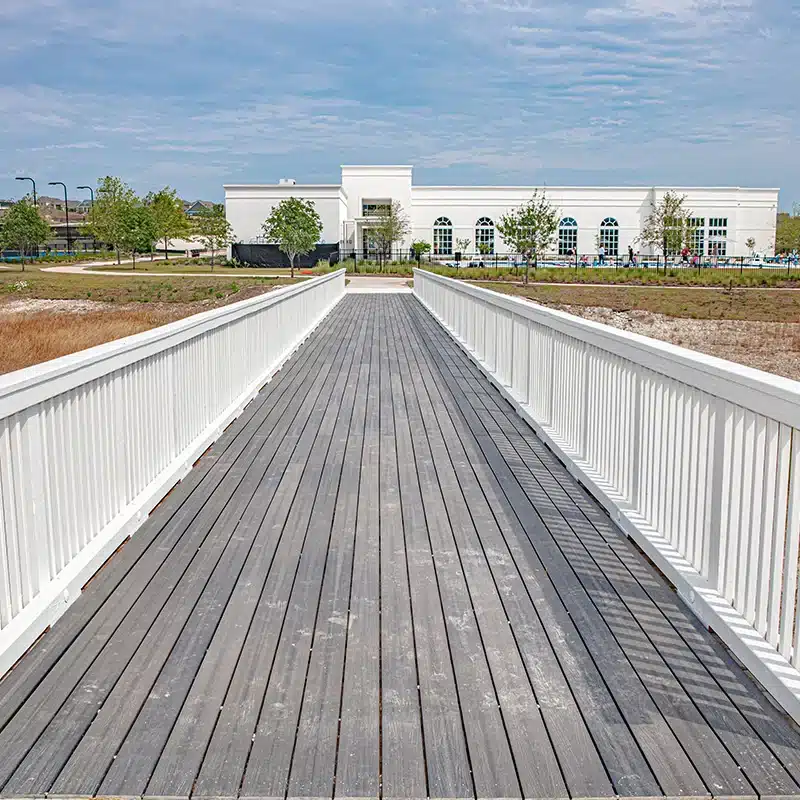

Walsh – Community Pedestrian Bridges
Overall Width: 9'10"
Clear Width: 9'2"
These pedestrian crossings provide connectivity across creek and landscaped areas within a master-planned development.
Waterside Place – Mixed-Use Pedestrian Bridge
Overall Width: 13'9"
Clear Width: 9'2"
The crossing connects residential areas with a waterfront town center where pedestrian circulation is a significant part of the destination experience.
These examples illustrate an important principle:
Bridge width should follow the needs of the project—not the other way around.
Shared-Use Bridge Width
Shared-use bridges may need to accommodate several types of users simultaneously.
Depending on the project, this can include:
- Pedestrians
- Runners
- Cyclists
- Mobility devices
- Strollers
- Golf carts
- Maintenance equipment
The more user types a bridge needs to accommodate, the more important circulation becomes.
Project teams should consider whether users need to pass one another comfortably, whether bicycles will travel in both directions, whether pedestrians may stop on the bridge, and whether maintenance equipment must occasionally share the crossing.
Clear width becomes particularly important because railings, curbs, structural elements, and other features can reduce the actual usable space available on the deck.
Vehicular Bridge Width
Vehicular bridge width is influenced by traffic requirements, lane configuration, anticipated vehicle types, barriers, curbs, approaches, pedestrian accommodations, and applicable project requirements.
One of the first decisions is whether the crossing will operate as a single-lane or double-lane bridge.
A private access bridge with low traffic volumes may function effectively with a single lane, while a community entrance or higher-volume roadway may require simultaneous two-way traffic.
The bridge may also need additional width for:
- Curbs
- Guide rails
- Barriers
- Shoulders
- Pedestrian walkways
- Bicycle facilities
- Emergency vehicles
- Specialty vehicles
Width should therefore be coordinated with both traffic requirements and the larger civil/site design.
Explore our Vehicular Bridge Design Guide for additional information about lanes, loading, span, approaches, foundations, and bridge architecture.
Single-Lane Bridge Width
Single-lane bridges can provide efficient vehicular access where traffic volumes and project requirements do not justify simultaneous two-way movement.
Applications can include:
- Private properties
- Estates
- Parks
- Golf courses
- Resorts
- Campuses
- Low-volume residential areas
- Maintenance roads
Width should account for the largest anticipated vehicles rather than only everyday passenger cars.
Emergency apparatus, delivery trucks, maintenance vehicles, landscaping equipment, and other occasional traffic should be identified during planning.
Approaches and sightlines are also important because drivers may need to recognize opposing traffic before entering a single-lane crossing.
Double-Lane Bridge Width
Double-lane vehicular bridges provide simultaneous traffic movement in both directions and generally require substantially greater clear width.
These crossings are common at:
- Residential community entrances
- Resorts
- Commercial developments
- Municipal roadways
- Campuses
- Mixed-use developments
- Higher-volume private roads
YBC's completed bridges demonstrate that overall dimensions can vary even within double-lane applications.
For example, Heritage Shores has a vehicular width of 32 feet with 26 feet clear, while Esplanade Lake Club has a vehicular width of 26 feet with 24'5" clear.
Those differences reinforce why lane count alone does not determine bridge width.
Vehicle requirements, barriers, structural configuration, pedestrian accommodations, approaches, and project-specific criteria must also be considered.
Vehicular Bridges With Pedestrian Walkways
One of the most important width decisions occurs when a vehicular bridge must also accommodate pedestrians.
Rather than constructing two separate bridges, some projects incorporate a dedicated pedestrian section alongside the vehicular travel lanes.
This can create an efficient integrated crossing while providing physical separation between users.
Design considerations may include:
- Vehicular clear width
- Pedestrian clear width
- Separation barriers
- Pedestrian railings
- Curbs
- Accessibility
- Approach connections
- Lighting
- Sightlines
YBC's Ocean Isle project, for example, combines a 25-foot overall vehicular section with 23 feet clear and an 11-foot pedestrian section with 10 feet clear.
At Bear Creek, the bridge combines a 26-foot vehicular width with 24'9" clear and a separate 4'10" pedestrian section with 4'3" clear.
The appropriate combination depends on how each user group will interact with the crossing.
Bridge Width and Accessibility
Accessibility can influence pedestrian bridge width as well as the pathways and approaches connecting to it.
Depending on applicable requirements, designers may need to consider mobility devices, passing space, clearances, handrails, landings, approach grades, turning areas, and transitions between the bridge and surrounding paths.
These requirements should be incorporated during early bridge planning rather than addressed after the structural width has already been established.
Accessibility can affect not only clear width but also bridge length, alignment, elevation, and approach design.
Bridge Width and Railings
Railings, guide rails, barriers, curbs, and handrails occupy physical space.
That means:
Overall bridge width ≠ clear usable bridge width.
A pedestrian bridge that measures ten feet from outside edge to outside edge may provide less than ten feet of actual walking space once railing systems are installed.
The same principle applies to vehicular bridges.
Guide rails, curbs, pedestrian barriers, and structural components can reduce the usable roadway width within the overall bridge footprint.
This is why project specifications should clearly distinguish between overall width and clear width.
Bridge Width and Loading
Width and loading are closely connected.
Increasing bridge width can increase the amount of deck area and structural material required while also changing how pedestrian or vehicular loads are distributed across the structure.
A wider vehicular bridge may accommodate multiple traffic lanes, larger vehicles, or attached pedestrian sections, each of which introduces different loading conditions.
Similarly, pedestrian bridge loading is commonly expressed in pounds per square foot (PSF). Increasing the usable deck area can therefore affect the total live-load condition considered by the engineering team.
Bridge width and loading should consequently be evaluated together rather than as independent design decisions.
Learn more in our Bridge Load Capacity Guide.
Bridge Width and Span
Width can also influence the structural requirements of a bridge.
A wider deck may require different structural-member arrangements, connections, foundations, lateral systems, or other engineering considerations compared with a narrower crossing of the same length.
Span and width therefore need to be evaluated together.
A 100-foot-long pedestrian bridge and a 100-foot-long double-lane vehicular bridge may cross the same distance but represent very different structural problems.
Explore our Types of Bridge Designs to learn how free-span, repetitive-span, short-span, and multiple-span configurations respond to different crossing conditions.
Bridge Width and Approaches
The bridge should connect naturally with the infrastructure leading to and from it.
For pedestrian bridges, that means coordinating the deck with:
- Trails
- Sidewalks
- Greenways
- Boardwalks
- Ramps
- Gathering spaces
For vehicular bridges, width should be coordinated with:
- Roadways
- Travel lanes
- Curves
- Shoulders
- Intersections
- Entry drives
- Turning movements
A mismatch between bridge and approach widths can create unnecessary bottlenecks, awkward transitions, or circulation challenges.
The bridge should therefore be considered as part of a larger movement system, not as an isolated structure.
Does a Wider Bridge Cost More?
Generally, increasing bridge width can increase project cost because a wider structure may require additional decking, structural members, railings, foundations, materials, labor, and engineering.
However, width is only one factor influencing bridge cost.
Span, loading, site access, foundations, materials, architectural details, environmental conditions, construction methodology, permitting requirements, and other project-specific considerations can have substantial impacts as well.
For that reason, simply minimizing width is not always the best way to optimize cost.
A bridge that is too narrow for its intended use may create operational limitations, circulation problems, or expensive modifications later.
The objective should be to establish the appropriate width for the project's requirements and expected lifecycle.
Should You Design a Bridge Wider for Future Use?
Potential future use should be considered when determining bridge width.
A residential community may expand. A park trail may eventually become a shared-use path. A resort may add amenities. Pedestrian traffic may increase as surrounding development occurs.
Changing bridge width after construction can be considerably more complicated than planning for reasonable future requirements during design.
That does not mean every bridge should be oversized.
Instead, project teams should evaluate whether foreseeable changes in traffic, users, maintenance requirements, or surrounding development justify additional capacity during initial planning.
How Do You Determine the Right Bridge Width?
Start with the users.
Before selecting a dimension, identify:
- Who will use the bridge?
- How many people or vehicles will use it?
- Will traffic move in one or both directions?
- Will pedestrians and vehicles share the crossing?
- Will bicycles or golf carts use it?
- What is the largest anticipated vehicle?
- Will maintenance or emergency equipment need access?
- What clear width is required after railings and barriers are installed?
- How wide are the approaching roads, trails, or pathways?
- Could the bridge's use change in the future?
- What codes, standards, owner criteria, or jurisdictional requirements apply?
Those answers give the project team a much stronger basis for determining an appropriate bridge width.
The final dimensions should then be coordinated with the bridge's span, loading, structure, foundations, approaches, accessibility, architecture, and site conditions.
Bridge Width Is One Part of the Complete Bridge Design
Bridge width should never be selected in isolation.
A successful bridge brings together:
Width + Span + Loading + Use + Accessibility + Foundations + Materials + Railings + Environment + Constructability
Changing one can affect several of the others.
That is why York Bridge Concepts approaches bridge planning through an integrated Design-Engineer-Build process that considers how the individual requirements of a crossing work together.
Learn more about the Bridge Design Process and how project requirements move from initial planning toward a buildable crossing.
Plan the Right Width for Your Bridge
There is no universal answer to “How wide should my bridge be?”
The right dimension depends on the people, vehicles, environment, infrastructure, and long-term requirements surrounding the crossing.
York Bridge Concepts works with owners, architects, landscape architects, civil engineers, developers, municipalities, contractors, and other project stakeholders to evaluate bridge width alongside loading, span, site conditions, accessibility, materials, aesthetics, and construction requirements.
Rather than fitting the project to a predetermined bridge dimension, YBC develops the crossing around the needs of the project.
Explore our Complete Guide to Bridge Design or talk with a YBC Bridge Consultant about the width and configuration of your crossing.
