Town Village Vehicular Bridge – Marietta, GA

York Bridge ConceptsGeorgia, Multiple Span, Vehicular Bridges

Town Village Timber Vehicular Bridge - Marietta, GA | York Bridge Concepts - Timber Bridge Builders

[embedyt] https://www.youtube.com/watch?v=8LX4T5KS27k&width=1184&height=666[/embedyt]

Town Village Project Overview

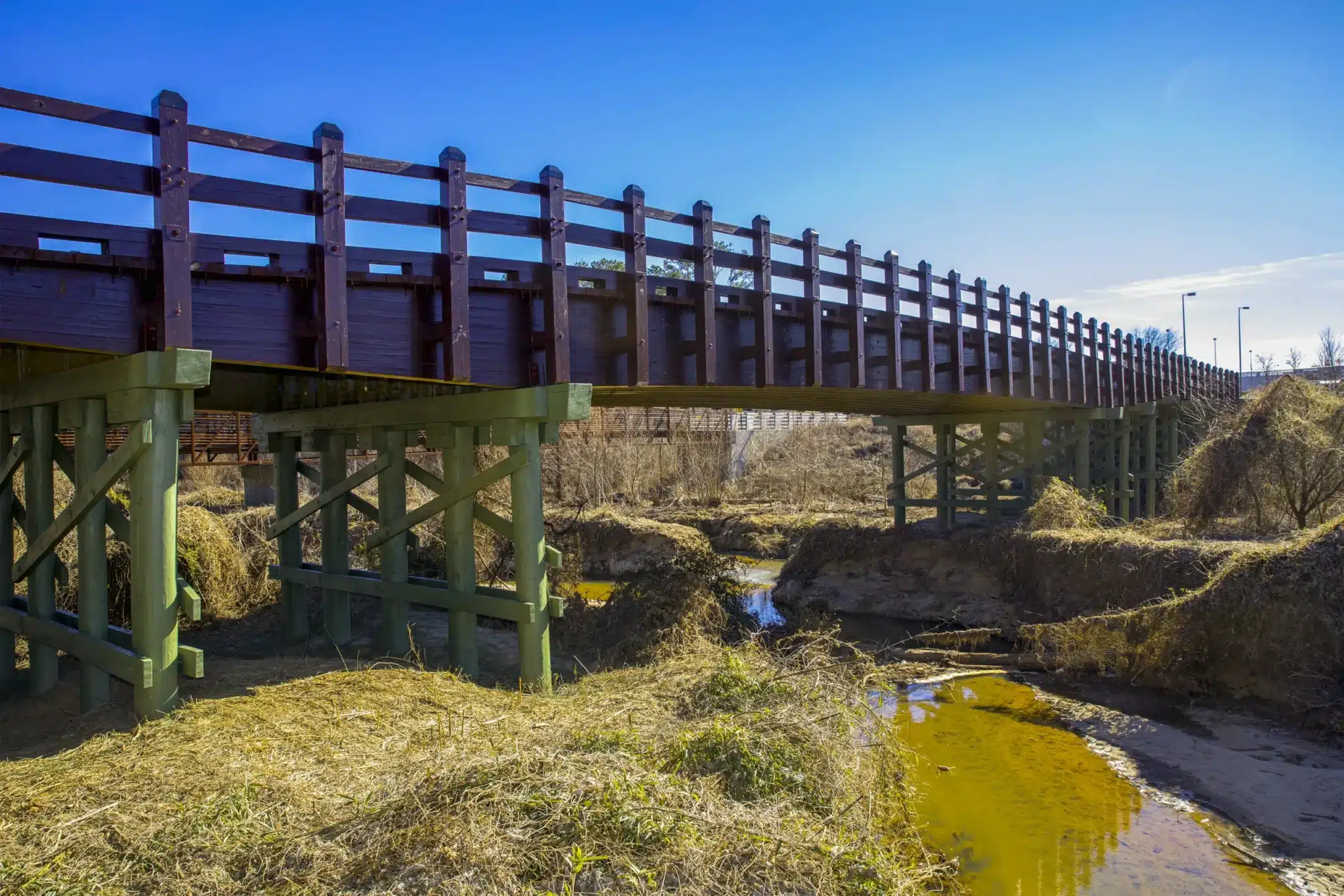

YBC teamed with the charming mixed-use development of Town Village to establish a unique main street connection between residents and its bustling Town Center at Cobb Mall. Severed by an expansive creek-flood plain the two developments required an environmentally challenging build, the Decero™ Design Team fashioned a 250 foot multiple span crossing with a striking 80 foot free span to minimize structural and construction impacts within the wetlands. A gorgeous tapered profile rolls effortlessly across the landscape connecting convenience with a graceful aesthetic dressed in a rich earth-toned palette. Despite several challenges the YBC turn-key approach and years of timber expertise made Town Village’s legacy bridge a reality.

Specifications


  • Width:
  • 26’ (24’ clear)
  • Length:
  • 250’
  • Height:
  • 20’ from ground
  • Capacity:
  • HS20-44
  • Construction:
  • Deck Level & Ground Level
  • Span Type:
  • Multiple Span
  • Span Lengths:
  • (1) 80’, (10) 15’, (2) 10’
  • Material:
  • CCA/CA-C Treated Southern Yellow Pine
  • Foundation:
  • Timber Piles & Abutments (Acrylic/Polymer Coated where exposed)
  • Stringers:
  • SYP Transition Glulam Stringers (Translucent Coated where exposed)
  • Deck System:
  • 5 ½” Timber Deck
  • Guard Rail:
  • Decero™ Classic Design Series
  • Crossing:
  • Creek, Flood Plain
New call-to-action

Planning Resources

Like something you see on this project? Get more information below or visit the York Bridge Design Center to see all resources.
GENERIC SPAN drawing
New call-to-action
Loading Diagram
New call-to-action
Generic Section View
New call-to-action
Building Material

New call-to-action
New call-to-action

Decking Material Options
New call-to-action
Railing Design Examples
New call-to-action
Additional Design Elements
New call-to-action
*Resources above may not be exact to the specifications for this bridge, but reflect our current updated standards.
